A Vertical Type Of Activated Carbon Kiln For Shell Material

For Shell based material , like coconut shell ,apricot shell, peach kernel shell ,or enen Olive shell ect. Xingyuan have a "one Step Activated Carbon kiln", vertical activated carbon kiln, which can make activated carbon directly from shell to activated carbon . no need extra carbonizing process.

---Raw shell directly produce AC.

---Low electricity consumption.

---Easy operation ,no need too much experience

---Great yeild about 5.5 : 1

One step means from raw shells to activated carbon, only need one step, feeding raw shell output activated carbon.

Traditionally Steam activation is in a two-stage process.

----- Firstly the raw material, in the form of lumps, pre sized material, briquettes or extrudates, is carbonized by heating in an inert atmosphere such as flue gas, second stage is the activation stage which enlarges the pore structure, increases the internal surface area and makes it more accessible.

-----The carbonized product is activated with steam at a temperature between 900C to 1000C. The chemical reaction between the carbon and steam takes place at the internal surface of the carbon, removing carbon from the pore walls and thereby enlarging the pores. The steam activation process allows the pore size to be readily altered and carbons can be produced to suit specific end-sues.

But, Xingyuan One step activated carbon upright kiln designed in one stage, from the raw shell directly to the activated carbon by steam activation method.

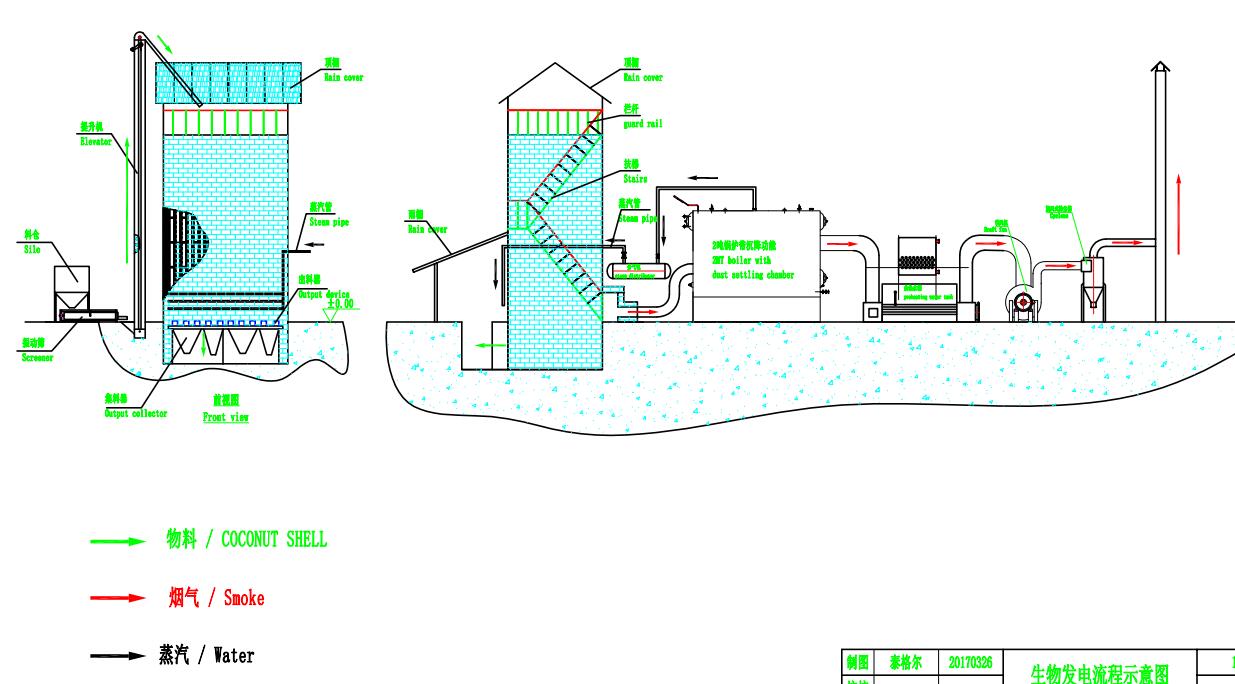

Shell based vertical type one step activated carbon kiln
