Xingyuan with many different type of shell based activated carbon like apricot shell activated carbon and coconut shell activated carbon.
 |  |
Shell based activated carbon is a carbonaceous, highly porous adsorptive medium that has a complex structure composed primarily of carbon atoms. The networks of pores in activated carbons are channels created within a rigid skeleton of disordered layers of carbon atoms, linked together by chemical bonds, stacked unevenly, creating a highly porous structure of nooks, crannies, cracks and crevices between the carbon layers.

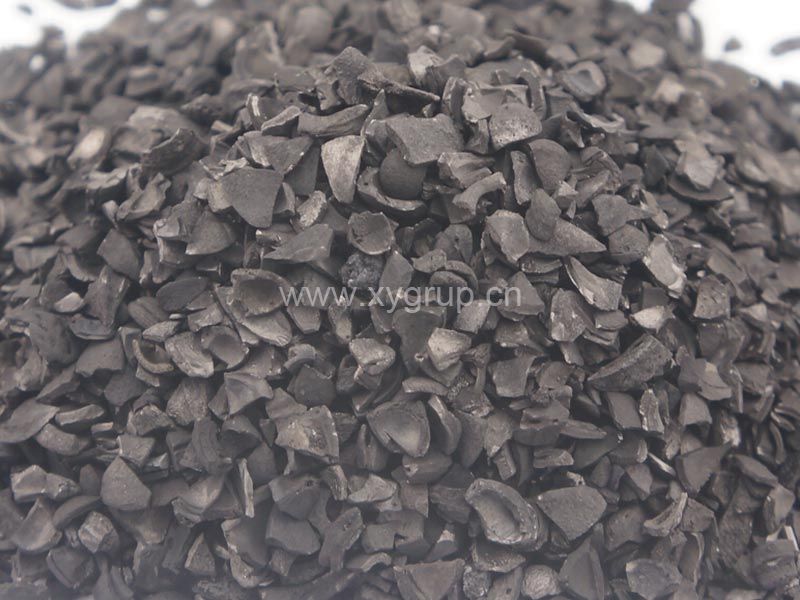

Shell based activated carbons are manufactured from coconut shell, olive pits, apricot shell, peach shell,palm shell,date kernels and various carbonaceous specialty materials. High Temperature Steam Activation mechanisms are used in the production of activated carbons from these raw materials.
The intrinsic pore network in the lattice structure of activated carbons allows the removal of impurities from gaseous and liquid media through a mechanism referred to as adsorption. This is the key to the performance of activated carbon.

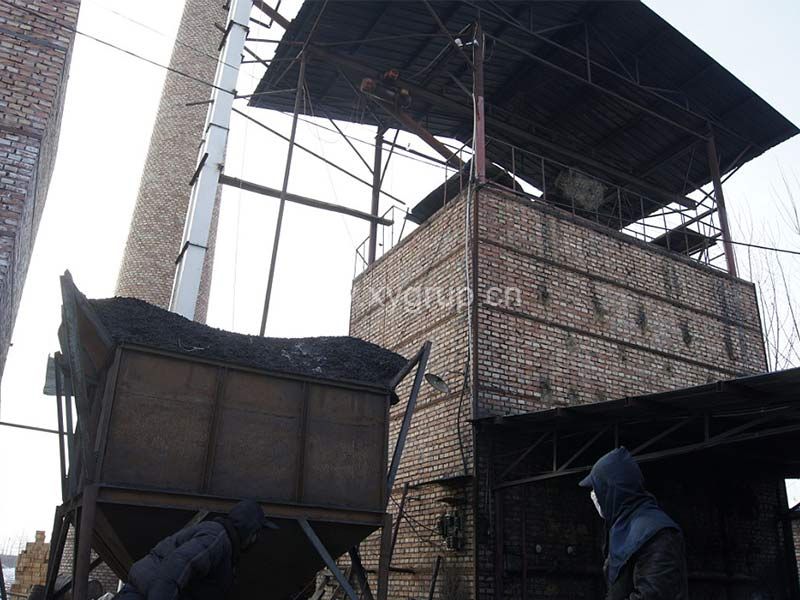

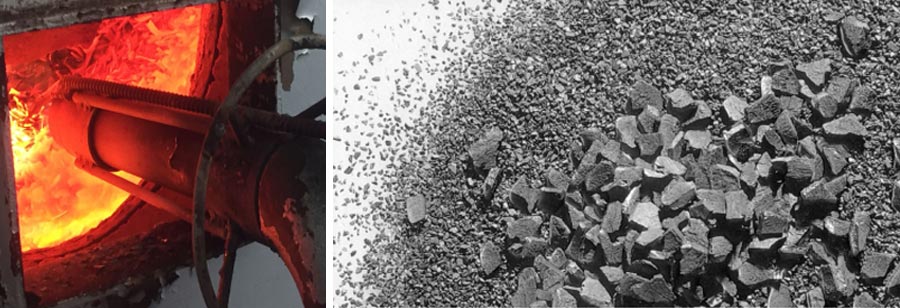

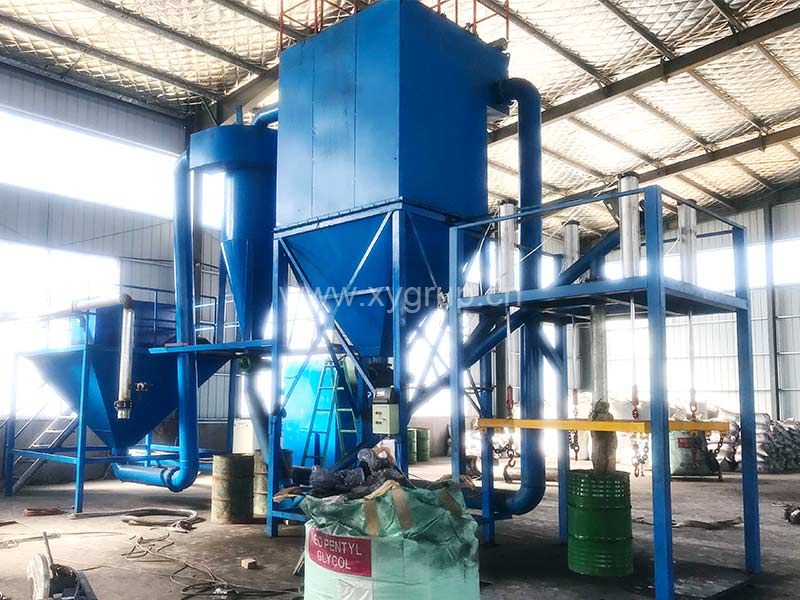

--Xingyuan Activated Carbon Factory Equipment
From 1990, Charcoal as Xingyuan Group first business, now already almost 30 years history, from 1997, Xingyuan begin to produce activated carbon as development for charcoal, now Xingyuan have carbonizing furnace 4set, Activation Rotary Kiln 6 set, and Upright Kiln 3 set, factory take land more than 70000square meter, yearly capacity for activated carbon more than 6000tons, become the first top three in North China carbon active enterprise.

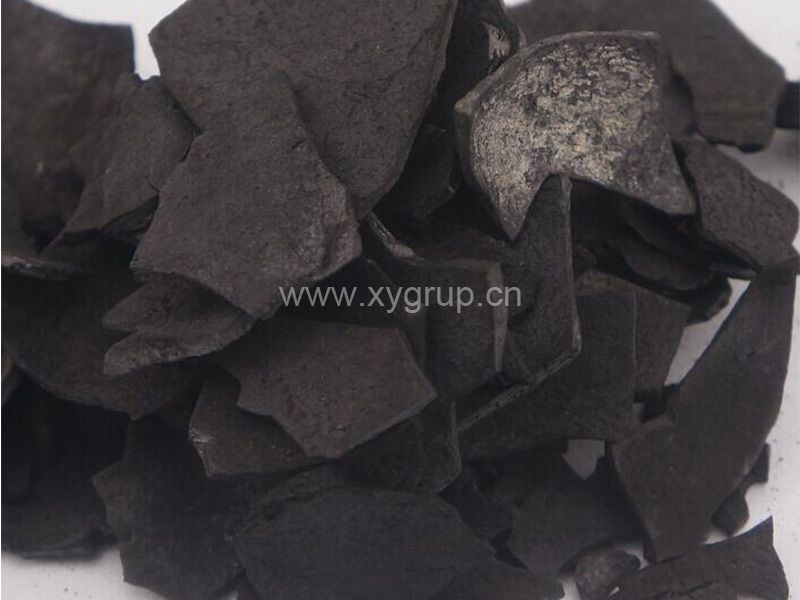

Beginning from 2008, Xingyuan begin import coconut shell charcoal raw material from Indonesia, Philippine, Vietnam etc. south east countries, import wood charcoal from South Africa countries, keep the good relationship with suppliers till to now.
Based on the years of technology and manufacturing experience, Xingyuan activated carbon export to Japan, S.Korea and other countries, get more focus by clients and good reputation.
 |  |

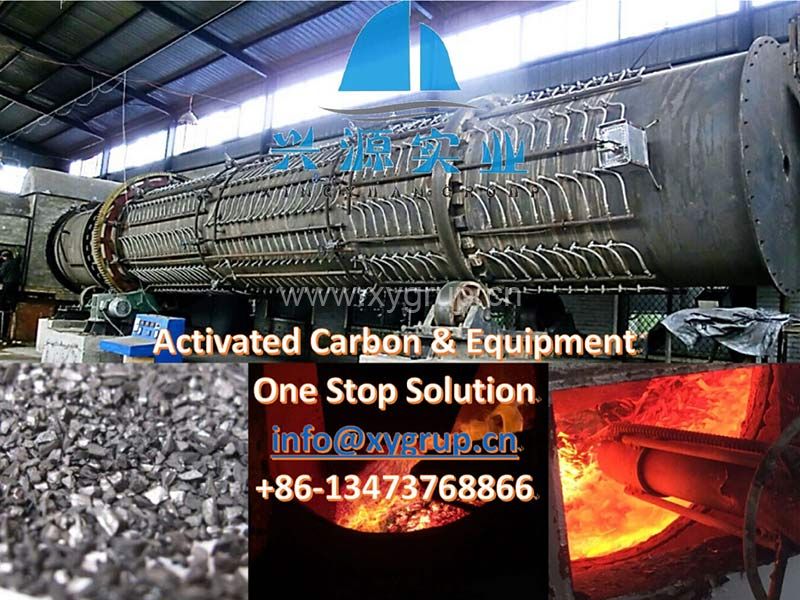

| Activated carbon Rotary Kiln | |
 |  |
| Activated carbon upright kiln | |
 |  |
| Activated carbon Rake furnace / Harrow Furnace | |
 |  |
| Activated carbon Slep Kiln Activated carbon Srep Kiln | |
The very large internal surface areas characterized by microporosity along with high hardness and low dust make these coconut shell carbons particularly attractive for water and critical air applications as well as point-of-use water filters and respirators.
Carbon Activated, as a manufacturer and distributor of coconut shell based carbons, stocks a wide range of high-quality products. In addition to granular forms, we have a variety of pelletized grades (3mm, 4mm & 5mm) available for delivery to any destination worldwide.
· Very high surface area characterized by a large proportion of micropores
· High hardness with low dust generation
· Excellent purity, with most products exhibiting no more than 3-5% ash content.
· Renewable and green raw material.
In-house expertise is available for selection of the optimum carbon for any application.
Products are available in the following mesh sizes (specialized particle distributions are also available on request).

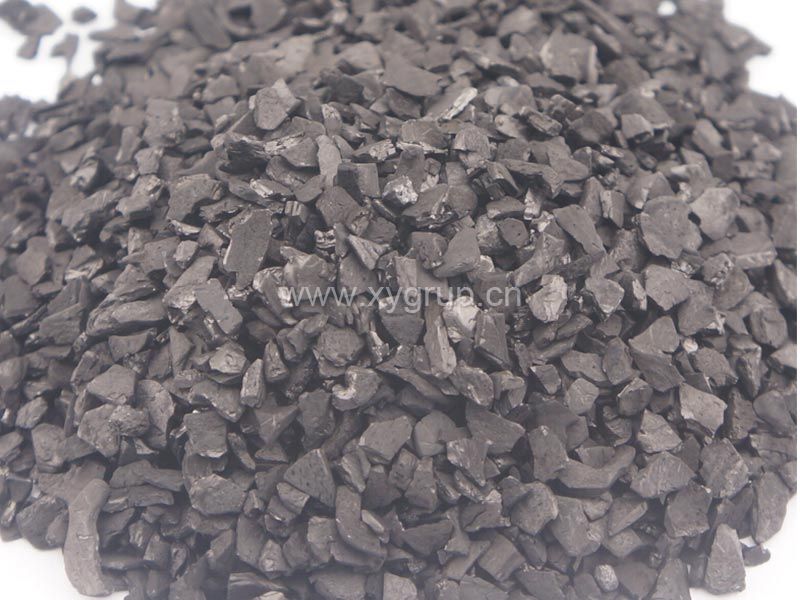

| COCONUT SHELL BASED GRANULAR ACTIVATED CARBON | |||||||
| Specifications | Technical Data | Standard Test Method | |||||
| Mesh size | 8×16 | 8×20 | 8×30 | 12×30 | 12×40 | 18×40 | ASTM D2862 |
| Iodine Value (minium) | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | ASTM D4607 |
| CTC value % (minium) | 50 | 55 | 60 | 65 | 75 | 80 | ASTM D3467 |
| Appaerent density in Kg/m3 (min.) | 540 | 530 | 510 | 480 | 430 | 415 | ASTM D2854 |
| Ball pan hardness | 98% | 98% | 98% | 96% | 95% | 95% | ASTM D3802 |
| Moisture (Max) | 5% | 5% | 5% | 5% | 5% | 5% | ASTM D2867 |
| Ash (Max) | 3% | 3% | 3% | 5% | 5% | 7% | ASTM D2866 |
| PH | 9-11 | 9-11 | 9-11 | 9-11 | 9-11 | 9-11 | ASTM D3838 |
| Model | Activated Carbon Type |
| Mesh Size (US Sieve) | 4x8 / 6x12 / 8x16 / 8x30 / 12x40 / 20x50 |
| Iodine (mg/g) Minimum | 800/850/900/950/1000/1050/1100/1150/ 1200/1250/1300 |
| CCL4/CTC (%) Minimum | 50 / 55 / 60 / 65 / 70 / 75 / 80 |
| Surface Area (m2/g) | 850-1350 |
| Apparent Density (g/cc) | 0.40-0.54 |
| Hardness (%) Minimum | 95 / 96 / 97 / 98 / 99 |
| Ash Content (%) Maximum | 5 |
| Moisture (%) Maximum | 5 |
| pH | 9.5 - 11 |

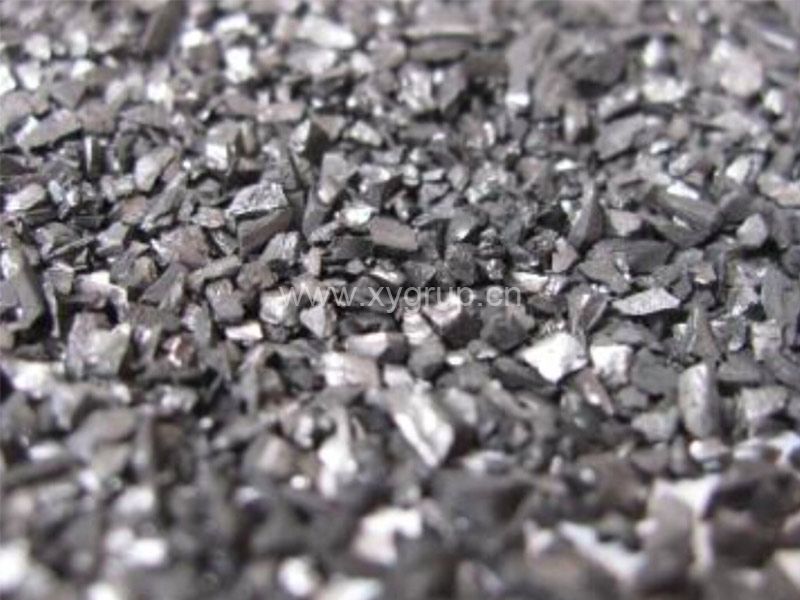

Water Washed Granular Coconut Shell Carbon
| Model | Activated Carbon Type |
| Mesh Size (US Sieve) | 4x8 / 6x12 / 8x16 / 8x30 / 12x40 / 20x50 |
| Iodine (mg/g) Minimum | 800/850/900/950/1000/1050/1100/1150/ 1200/1250/1300 |
| CCL4/CTC (%) Minimum | 50 / 55 / 60 / 65 / 70 / 75 / 80 |
| Surface Area (m2/g) | 850-1350 |
| Apparent Density (g/cc) | 0.40-0.54 |
| Hardness (%) Minimum | 95 / 96 / 97 / 98 / 99 |
| Ash Content (%) Maximum | 3 |
| Moisture (%) Maximum | 2 |
| pH | 8-9.5 |
Acid Washed Granular Coconut Shell Carbon
| Model | Activated Carbon Type |
| Mesh Size (US Sieve) | 4x8 / 6x12 / 8x16 / 8x30 / 12x40 / 20x50 |
| Iodine (mg/g) Minimum | 800/850/900/950/1000/1050/1100/1150/ 1200/1250/1300 |
| CCL4/CTC (%) Minimum | 50 / 55 / 60 / 65 / 70 / 75 / 80 |
| Surface Area (m2/g) | 850-1350 |
| Apparent Density (g/cc) | 0.40-0.54 |
| Hardness (%) Minimum | 95 / 96 / 97 / 98 / 99 |
| Ash Content (%) Maximum | 0.5 |
| Moisture (%) Maximum | 2 |
| pH | 7 |
Powder Coconut Shell Carbon
| Model | Activated Carbon Type |
| Mesh Size (US Sieve) | 4x8 / 6x12 / 8x16 / 8x30 / 12x40 / 20x50 |
| Iodine (mg/g) Minimum | 800/850/900/950/1000/1050/1100/1150/ 1200/1250/1300 |
| CCL4/CTC (%) Minimum | 50 / 55 / 60 / 65 / 70 / 75 / 80 |
| Methylene Blue (mg/g) Minimum | 100/110/120/130/140/150/160/170/180/190/200/210/220/230 |
| Apparent Density (g/cc) | 0.35-0.60 |
| Hardness (%) Minimum | 80 / 85 / 90 / 95 |
| Ash Content (%) Maximum | 3-6 |
| Moisture (%) Maximum | 3-10 |
| Floating (%) Maximum | 0.3 / 0.5 / 1 / 1.5 / 2 / 2.5 / 3 / 5 |
 | ||
| 4×6 (4.75 x 3.35 mm) | 8×16 (2.36 x 1.18 mm) | 18×40 (1.00 x 0.425 mm) |
| 4×8 (4.75 x 2.36 mm) | 10×18 (2.00 x 1.00 mm) | 20×50 (0.85 x 0.300 mm) |
| 4×10 (4.75 x 2.00 mm) | 12×20 (1.70 x 0.85 mm) | 30×60 (0.60 x 0.250 mm) |
| 6×12 (3.35 x 1.70 mm) | 12×30 (1.70 x 0.60 mm) | 30×70 (0.60 x 0.212 mm) |
| 6×14 (3.35 x 1.40 mm) | 12×40 (1.70 x 0.425 mm) | 50×100 (0.300 x 0.150 mm) |
| 6×16 (3.35 x 1.18 mm) | 14×30 (1.40 x 0.60 mm) | 50×200 (0.300 x 0.075 mm) |
| 8×14 (2.36 x 1.40 mm) | 18×35 (1.00 x 0.50 mm) | 60×200 (0.250 x 0.075 mm) |
Different Type Of Activated Carbon By Xingyuan Industry
| 1 |  |

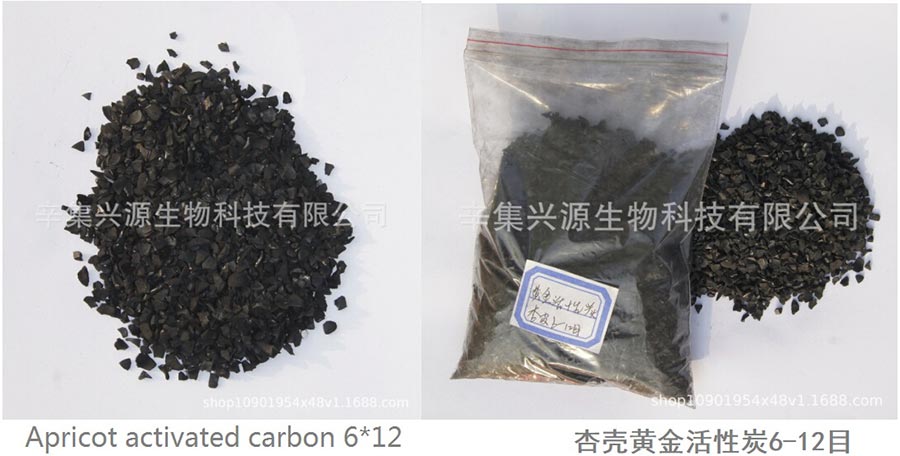

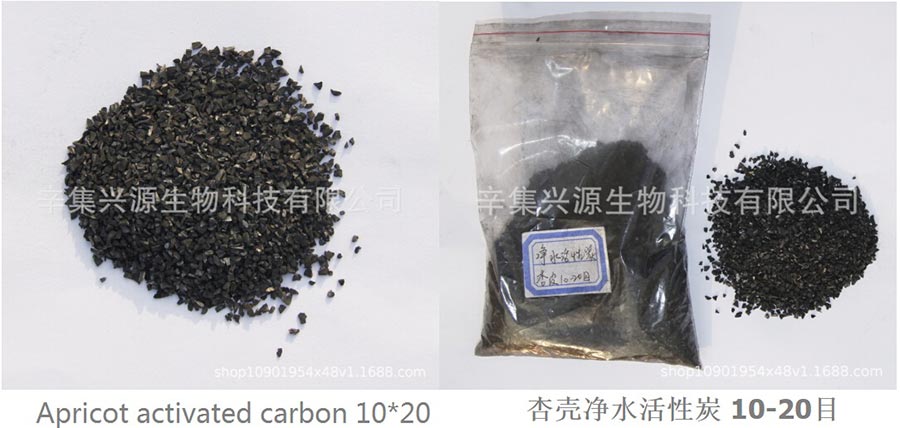

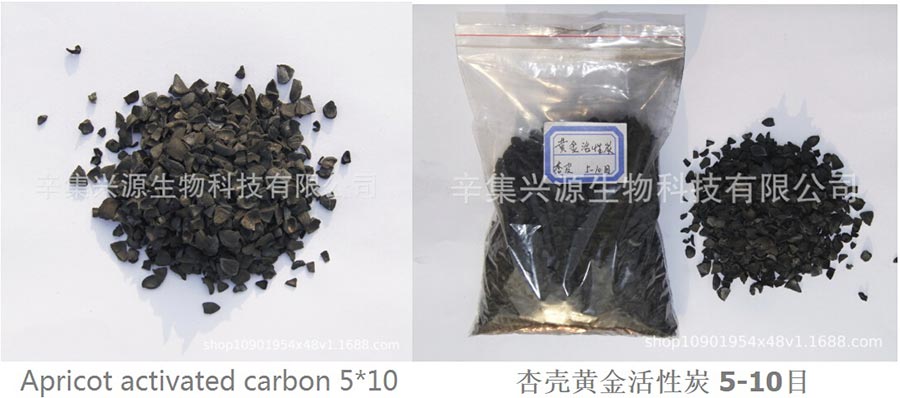

| Apricot activated carbon for gold mining use | |
| 2 |  |
| Gold mine activated carbon by apricot based | |
| 3 |  |

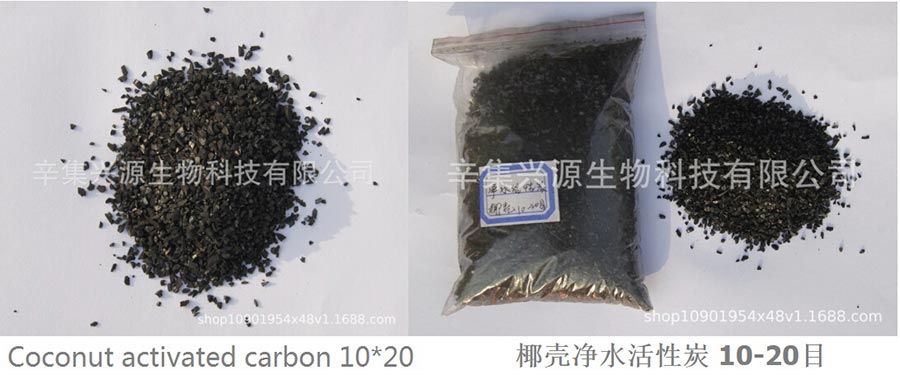

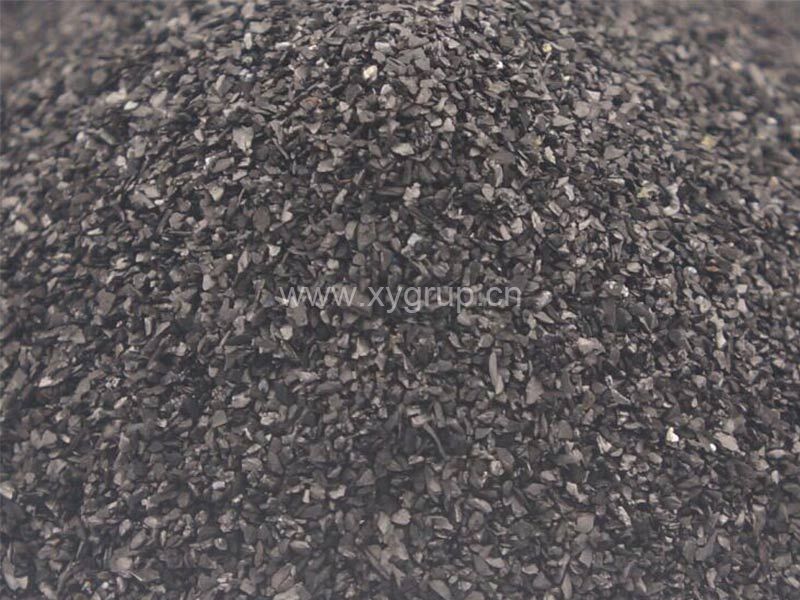

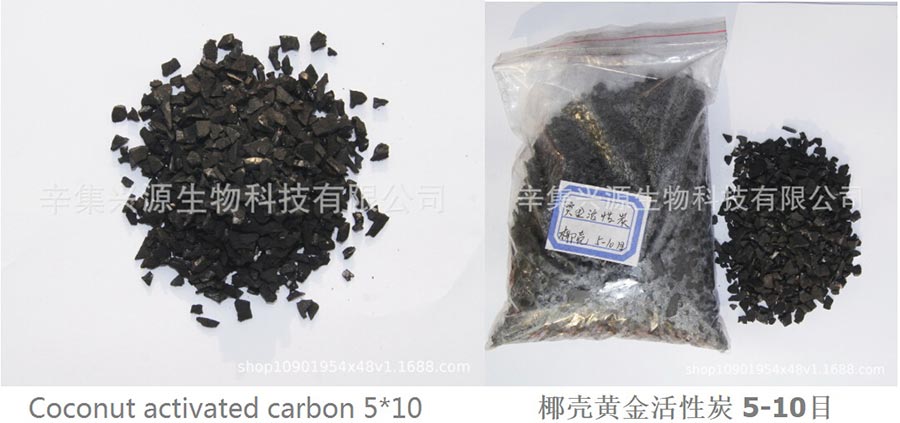

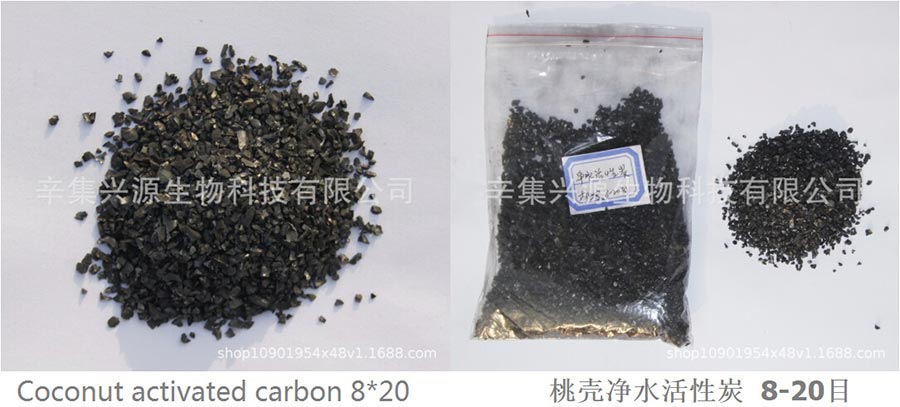

| Coconut activated carbon coconut activated charcoal | |
| 4 |  |
| Water treatment activated carbon | |
| 5 |  |
| Drinking water activated carbon /Activated carbon for water purification | |
| 6 |  |
| Water purify activated carbon activated carbon for water | |
| 7 |  |

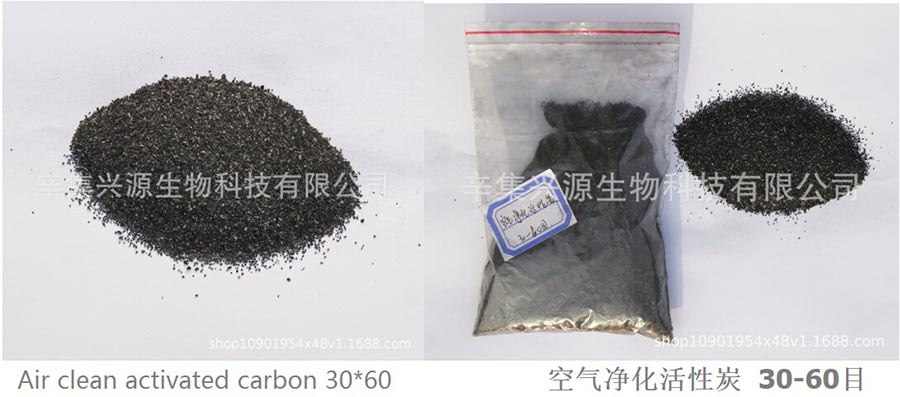

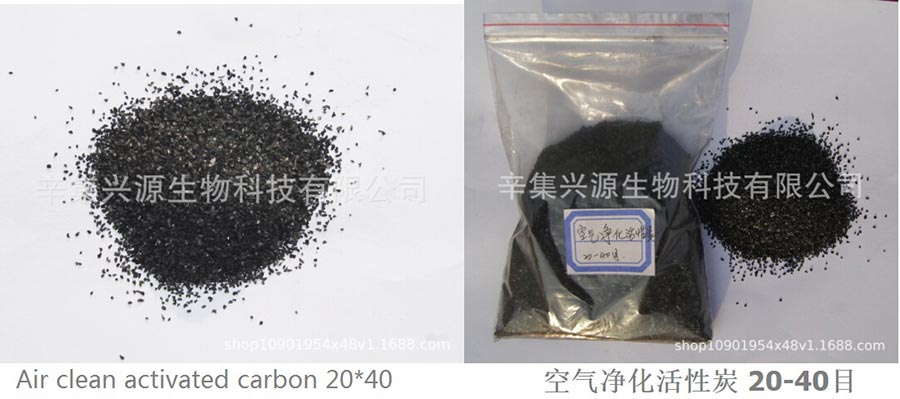

| Carbon activated Activated carbon for air purification | |
| 8 |  |
| Granular activated carbon mesh size activated carbon GAC | |
| 9 |  |
| Activated carbon for filter Activated carbon granular | |
| 10 |  |

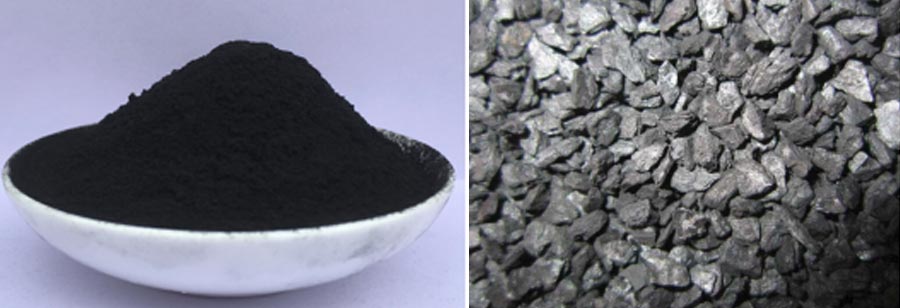

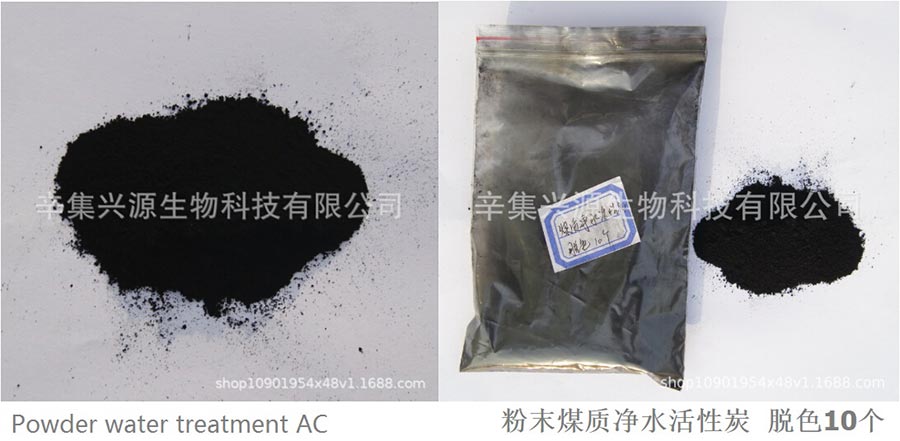

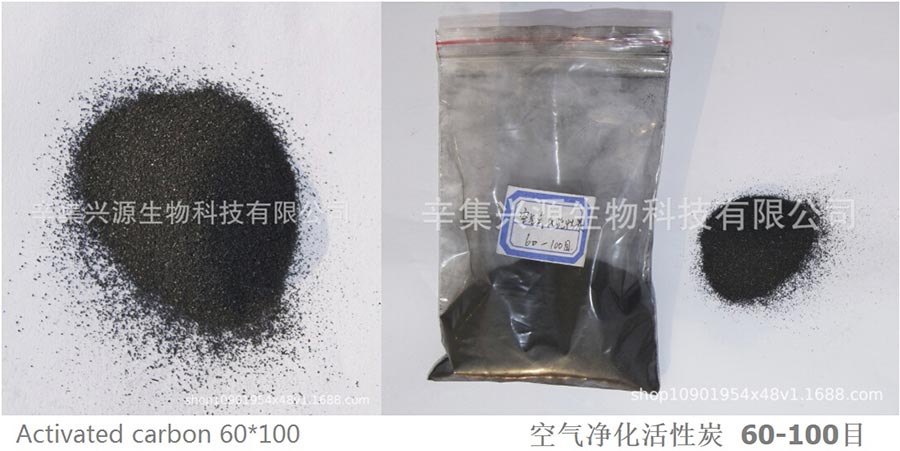

| Powder activated carbon activated carbon powder | |
| 11 |  |
| Sugar use activated carbon PAC | |
| 12 |  |

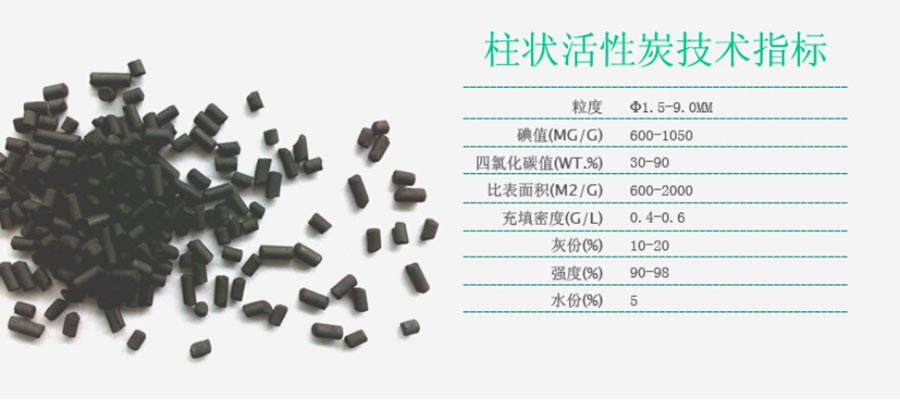

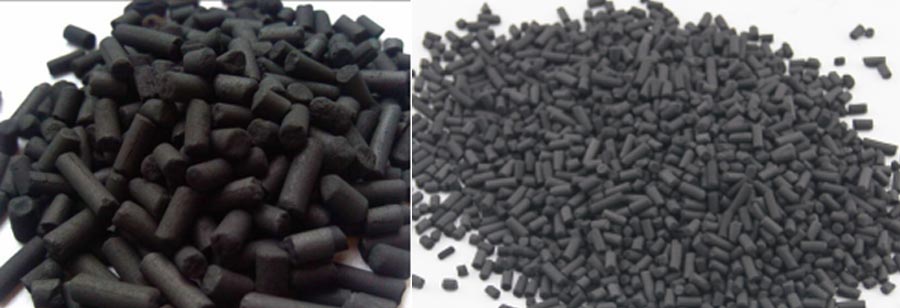

| Extruded activated carbon Pellets activated carbon | |
| 13 |  |
| Activated carbon pellets Coal based pellets activated carbon | |
| 14 |  |
| Coal activated carbon Coal based activated carbon | |
| 15 |  |

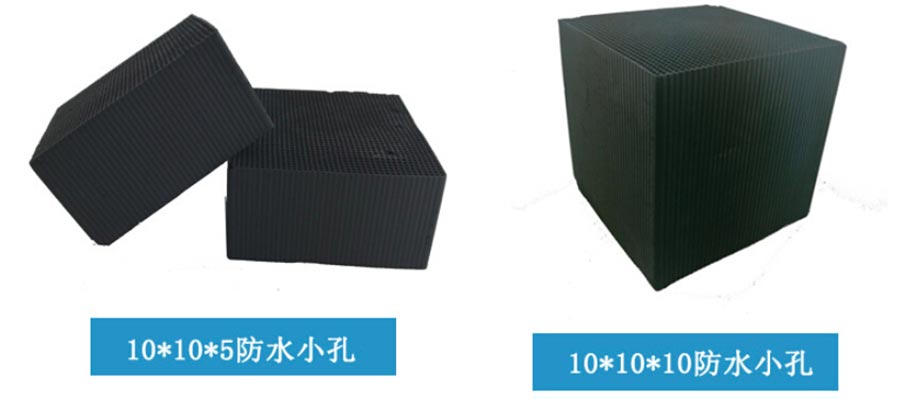

| Honeycomb activated carbon Gas honeycomb activated carbon |
From the activated carbon different application, Xingyuan separate the activated carbon into:
· Water treatment
· Air & Gas treatment
· Chemicals & Pharmaceutical
· Food & Beverages
· Gold Recovery
· Soil Remediation
· Cosmetics
| Grade | Standard particle size (mesh) | Characteristics | Typical application |
| For water purification | 10 ～ 30 | 1: Coconut shell activated carbon has good characteristics, high purity, and sufficient hardness. 2: No fine particles generated during use. 3: Can be reused by regeneration. | A: Removal of musty smell in tap water, COD compounds, and THM B: Removal of ABS in water, phenol, foul odor and taste substances, and coloring matter C:Dechlorination of drinking water, pure water, or industrial water, removal of organic matter D:Water purifier, chemical compounds for water purification E: Tertiary treatment of sewage water and waste water from industrial use |
| 18 ～ 42 | |||
| 30 ～ 60 | |||
| For liquid phase purification | 10 ～ 30 | 1: Coconut shell activated carbon with high adsorption capability and purity 2: Good for adsorption of minor components due to well-developed micropores. 3: Can be reused by regeneration. | A: Decolorization and purification of industrial chemicals, intermediates or F&B products. B: Treatment of minor organic impurities in liquid phase |
| 18 ～ 42 | |||
| 30 ～ 60 | |||

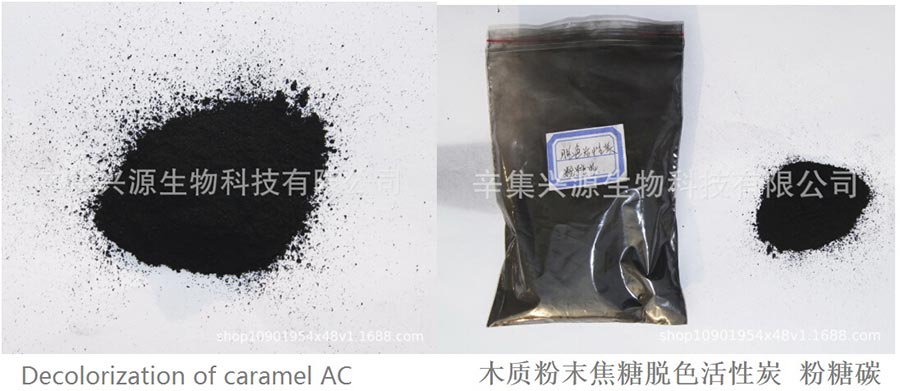

| For decolorization of liquid phase | 10 ～ 30 | 1: The macro pores of this carbon are suited for removal of colors. 2: Especially good in decolorization of highly concentrated solution. 3: Both caustic soda and baking recycling are possible. | A: Decolorization in food industry, such as amino acid, brewing, monosodium glutamate, glucose, sugar, syrup, gelatin, etc. B: Decolorization and purification of industrial chemicals, intermediates or F&B products. C: Decolorization of cleaning solvent D: Decolorization of waste water |
| 16 ～ 42 | |||
| For general water processing and decolorization | 10 ～ 30 | 1: Very well-developed micro- to meso-scale pores of this coal-based activated carbon provide excellent adsorption speed and adsorption capacity. 2: Can be used very efficiently by recycling. | A: Removal of COD and decolorization of sewage water and waste water B: Removal of COD compounds and humic substances in tap water C: Decolorization and purification in production processes of various products D: Preprocessing of factory water and pure water processing E: Decolorization in foods industry, such as glucose, sugar, syrup, glycerin, etc. F: Decolorization and purification of industrial chemicals, intermediates or F&B products. |
| 18 ～ 42 | |||
| For processing general water | 7.5 ～ 18 | 1: As it has good surface hardness and abrasion resistance, recycling with high efficiency is possible. 2: Due to its spherical shape, adding to and removal from the adsorption tower can be performed easily. 3: Little fine powder is produced, and the equipment can start operation immediately. | A: Removal of COD and decolorization of sewage water and waste water B: Removal of COD compounds and humic substances in tap water C: Decolorization and purification in production processes of various products |
| 10 ～ 30 |

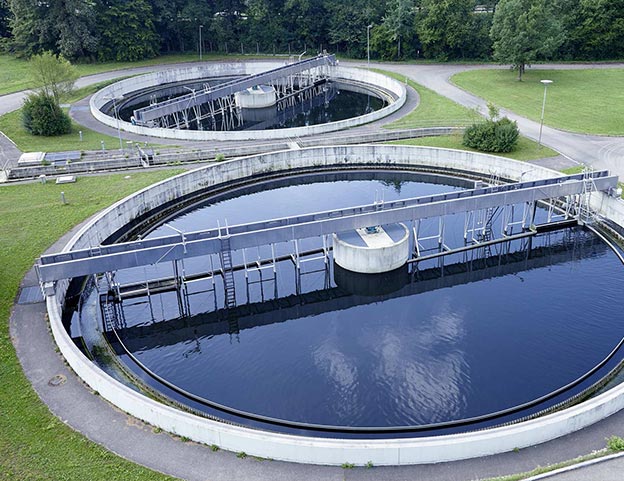

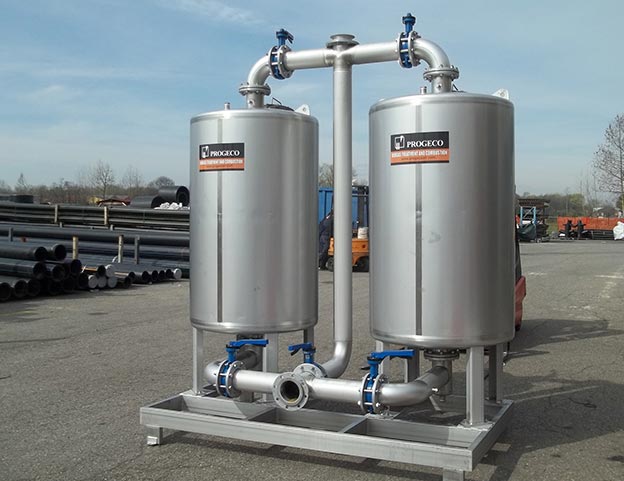

Water Treatment
Water. One of the world's most precious resources for drinking, irrigation or industrial processes. The supply of clean, fresh water continues to be more and more constrained as populations rise and water demands grow on our planet. Activated carbon is one of the best technologies available for improving water quality.
Water is a vital global resource, and activated carbon is widely used in many processes and industries where water needs to be purified.
Perhaps the best known application for activated carbon is the purification of drinking water. Indeed, in most developed countries, almost all municipal drinking water is filtered through activated carbon, as part of a multi-step purification process.
Applications for activated carbon in water purification include the following:
– Municipal drinking water treatment
– Point-of-use (POU) and point-of-entry (POE) filters
– Industrial process water, e.g. breweries, food, power plants, chemicals production,…
– Groundwater and soil remediation
– Industrial wastewater
– Municipal wastewater
– Landfill leachate
– Aquarium filters
– Swimming pool filtration
Depending on the exact application, activated carbons remove a wide range of unwanted chemicals and pollutants, including:
– Colour, taste and odour compounds in drinking water, such as Geosmin and MIB (2–Methylisoborneol)
– Dechlorination in POU filters, process water applications, swimming pools and aquaria filters
– Trace contaminants such as pharmaceuticals, herbicides, pesticides and other persistent organic pollutants (POPs) from municipal water streams.
– Various organic pollutants, such as the BTEX group, PFOS/PFOA and hydrocarbons, from groundwater in remediation projects, or from leachates.
Xingyuan supplies a wide range of product and services for the treatment of water. Powdered activated carbons (PAC) are used in batch treatment processes, whereas granular (GAC) grades are generally used in fixed filter beds, with the water passing through the filtration medium.
Air & Gas Treatment
The purity of air on our planet is of vital importance to us all. Whether you are working to meet emission regulations to protect the environment and/or human health, reduce nuisance odors, or produce ultrapure gas streams, Xingyuan provides the exact carbon to address your need.
Activated carbons are used extensively in the gas phase for the removal of a variety of unwanted contaminants, such as volatile organic compounds (VOCs) and odour-causing molecules. In China, the Government’s 2019 Clean Air Strategy will focus a great deal of attention on this issue, and Xingyuan Activated Carbons stands ready to assist in the supply of air purification solutions.
VOCs, typically from industrial processes such as chemical/pharmaceutical production, petrochemical tank venting, spray booths and soil remediation projects, include compounds such as acetone, benzene, styrene, toluene and xylene.
Odour control systems make use of impregnated activated carbons to remove compounds such as hydrogen sulfide (H2S), mercaptans, DMS and ammonia (NH3).
Industrial gas streams may require the removal of trace levels of various contaminants such as VOCs or, in the case of natural gas, heavy metals like mercury and cadmium.
In the oil and gas industry, specialised activated carbons are used as catalyst supports for mercaptan oxidation in the so-called Merox process. Mercaptans are removed from hydrocarbon streams by converting them to liquid disulfides.
For personal protection applications, such as respirators and escape hoods, carbons are used to remove a range of harmful or poisonous gaseous compounds.
Activated carbons can also be used in cigarette filters for the removal of some of the smoke's constituents, in order to improve the taste experience.
Chemicals & Pharmaceutical
Purity is essential in the production of pharmaceutical products. This applies to all stages, from raw materials to intermediates to final product. The unique properties of specific activated carbons from Xingyuan provide superior removal of colour compounds, odour compounds, proteins and other contaminants that could be present in the raw materials, or that form during production.
Activated carbons are used extensively for purification purposes in the production of a wide range of industrial chemicals and pharmaceutical compounds. Typical applications include the purification of amino acids, biodiesel, glycerine, mineral acids and active pharmaceutical ingredients (APIs).Solvent recovery is also an important application for activated carbon, either in the chemical/petrochemical industry or in printing and ink/dye production facilities.
Other uses for activated carbons in the petrochemical industry include amine and glycol purification, removing contaminants from gas scrubber systems.
Activated carbons are used either in a powder (PAC) form, and dosed in a batch process, or used in a granular form (GAC) in a fixed bed adsorber. As well as being useful for the main manufacturing process, carbons may also be used for the recovery of off-spec materials, or for the improvement of product purity levels to allow the sale of a higher-grade end-product.
Food & Beverages
Beverage makers rely on activated carbon to remove bad tastes and odors and help ensure the long-term stability of their products. We manufacture Activated Carbon products that are used to improve the quality of beverages ranging from water to fruit juices to distilled liquor so that beverages look good, smell good and taste good.
Activated carbons have long been used in the food and beverage industries for the purification of liquid and gas phase process streams. Their main purpose is the removal of colour, taste and odour, as well as any other organic trace contaminants.
Typical examples include the following:
– Sweetener purification – cane sugar, glucose and syrups.
– Food-grade acids, e.g. citric acid, produced via a fermentation process.
– Purification of ethanol for use in alcoholic beverages.
– Removal of tannins and other impurities in the wine growing industry.
– Purification of carbon dioxide (CO2) gas produced in breweries, prior to its re-use in food-grade applications.
– A highly purified form of PAC is used as the black food colourant E153
Gold Recovery
Highly activated carbon is used in the dissolved gold recovery process, either by introducing it directly into the CIL (carbon-in-leach) tanks or into separate CIP (carbon-in-pulp) tanks after leaching.The activated carbon adsorbs the dissolved gold from the leach slurry thereby concentrating it onto a smaller mass of solids. The carbon is then separated from the slurry by screening and subjected to further treatment to recover the adsorbed gold.
Xingyuan Activated Carbons has extensive operational and commercial experience in the supply of specialised grades of activated carbons into the precious metal recovery industry.
Activated carbons are used to recover gold from cyanide solutions, which are percolated through gold-containing ores.
Three main technologies exist for recovering gold from cyanide leachate solution:
– Carbon-in-Pulp (CIP)
– Carbon-in-Leach (CIL), includes 'Heap Leach'
– Carbon-in-Column (CIL)
Xingyuan Activated Carbons supplies a range of carbons for the gold mining industry, which independent testing, by leading academic institutions, has shown to offer exceptional performance. Our products are characterised by the following properties:
– High rates of gold loading and elution
– Good resistance to mechanical attrition
– Stringent particle size distribution
– minimal undersized material
– Low platelet concentrations
– Good reactivation performance
Soil Remediation
Activated carbon is produced when materials with high carbon concentrations, such as coal, wood, peat, or even coconut shell, undergo special treatment processes that expose them to extremely high temperatures without burning them. The result is a porous, highly adsorptive substance that binds easily with organic toxins. When mixed into contaminated soil or sediment, the activated carbon draws dioxin to it and sequesters it.
Cosmetics
Around the world, many different traditional medicine practitioners use activated charcoal powder made from coconut shells to treat soft tissue conditions, such as skin infections. Activated charcoal may have an antibacterial effect by absorbing harmful microbes from wounds. Several are available commercially. Activated charcoal–when used in a face mask–binds to dirt and helps pull it out of your pores, making them less visible (it's the oil and dirt that makes them appear bigger). This leaves your face feeling fresh.
