Home >> Products >> Activated Carbon

  • Impregnated Activated Carbon
  • Impregnated  Carbon

Impregnated Activated Carbon

Share

Xingyuan produce  various of impregnated activated carbon.

----KOH Impregnated Coal Based Carbon

----NaOH Impregnated Coal Based Carbon

----KI/Potassium Iodine Impregnated Coal Carbon

----Silver Impregnated Coconut Shell Carbon

Shell Based Activated Carbon

  • Product Description
  • Main Features

Xingyuan produce  various of imprenated activated carbon.

----KOH Impregnated Coal Based Carbon

----NaOH Impregnated Coal Based Carbon

----KI/Potassium Iodine Impregnated Coal Carbon

----Silver Impregnated Coconut Shell Carbon



Shell Based Activated CarbonShell Based Activated Carbon




Xingyuan provides several different grades of impregnated activated carbon for those special applications where either standard non-treated carbon does not work or where activated carbon’s adsorptive capacity can be greatly enhanced through impregnation.


--Xingyuan Activated Carbon Factory Equipment

From 1990, Charcoal as Xingyuan Group first business, now already almost 30 years history, from 1997, Xingyuan begin to produce activated carbon as development for charcoal, now Xingyuan have carbonizing furnace 4set, Activation Rotary Kiln 6 set, and Upright Kiln 3 set, factory take land more than 70000square meter, yearly capacity for activated carbon more than 6000tons, become the first top three in North China carbon active enterprise.
Beginning from 2008, Xingyuan begin import coconut shell charcoal raw material from Indonesia, Philippine, Vietnam etc. south east countries, import wood charcoal from South Africa countries, keep the good relationship with suppliers till to now.

Based on the years of technology and manufacturing experience, Xingyuan activated carbon export to Japan, S.Korea and other countries, get more focus by clients and good reputation.

Shell Based Activated CarbonShell Based Activated Carbon

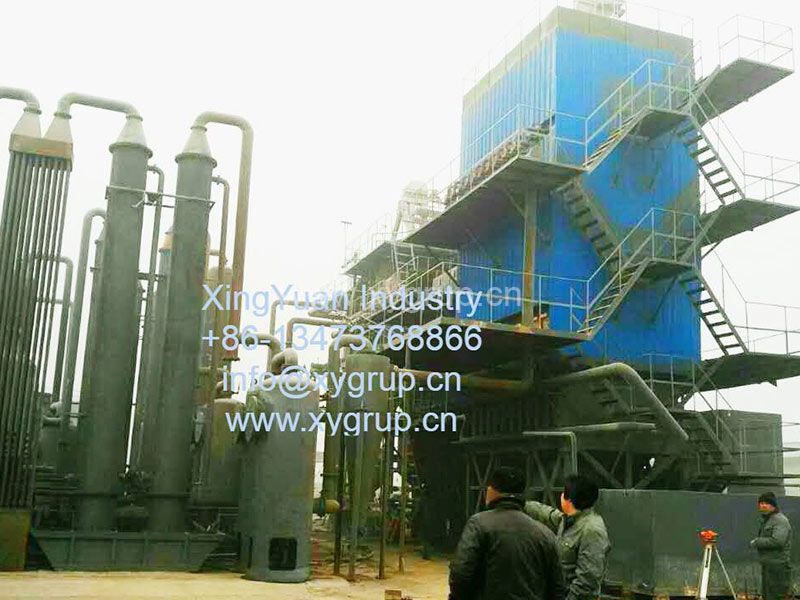

Activated carbon Rotary Kiln
Shell Based Activated CarbonShell Based Activated Carbon
Activated carbon upright kiln
Shell Based Activated CarbonShell Based Activated Carbon
Activated carbon Rake furnace / Harrow Furnace
Shell Based Activated CarbonShell Based Activated Carbon
Activated carbon Slep Kiln  Activated carbon Srep Kiln




KOH Impregnated Coal Based Carbon


Product DescriptionProduct Range Available
Mesh Size (US Sieve)GAC: 4x6/4x8/4x10/8x20
Diameter (mm)PAC: 1.5/3.0/4.0
Iodine (mg/g) Minimum1000
CCL4/CTC (%) Minimum60 / 65 / 70 / 75
KI Impregnation (%) Minimum2/3/4/5
H2S Break Through Capacity (g/cc) Minimum0.14
Apparent Density (g/cc)0.50 - 0.66
Hardness (%) Minimum90/95
Moisture (%) Maximum15




Sulfur Impregnated Coal Based Carbon


Product  DescriptionProduct Range Available
Mesh Size (US Sieve)GAC: 8x12/12x40
Diameter (mm)PAC: 1.5/3.0/4.0
Iodine (mg/g) Minimum1000
CCL4/CTC (%) Minimum60 / 65 / 70 / 75
Sulfur Impregnation (%) Minimum10/12/2003
Apparent Density (g/cc)0.50 - 0.66
Hardness (%) Minimum70/80/90/95



Phosphoric Acid (H2PO3) Impregnated Coal Based Carbon


Product  DescriptionProduct Range Available
Mesh Size (US Sieve)GAC: 30x60
Diameter (mm)PAC: 1.5/3.0/4.0
Iodine (mg/g) Minimum1000
CCL4/CTC (%) Minimum60 / 65 / 70 / 75
H2PO3 Impregnation (%) Minimum5/7/8/10/12
Apparent Density (g/cc)0.50 - 0.66
Hardness (%) Minimum70/80/90/95



Potassium Permanganate Impregnated Pelletized Coal Based Carbon


Product  DescriptionProduct Range Available
Mesh Size (US Sieve)4x6
Diameter (mm)4
Iodine (mg/g) Minimum1000
CCL4/CTC (%) Minimum60
Ash Content (%) Maximum12
Moisture (%) Maximum5
Bulk Density (lbs/cu.ft.)50
After Impregnation
Moisture (%) Maximum15
Potassium Permanganate (KMnO4) (%) Minimum4
H2S Capacity (g/cc) Minimum0.10



Silver Impregnated Coconut Shell Carbon
Product  DescriptionProduct Range Available
Activity (ASTM 3467) (CTC)60
Particle Size (US Mesh)20x50
Iodine (mg/g) Minimum1100
Ash Content (%) (ASTM 2866)2-3
Sulfur Impregnation (%) Minimum10/12/2003
Apparent Density (ASTM 2864) (g/cc)0.49
Hardness (ASTM 3802) (%) Minimum99
Bulk Density (lb/ft3)28
Silver Impregnation (%)1.05
